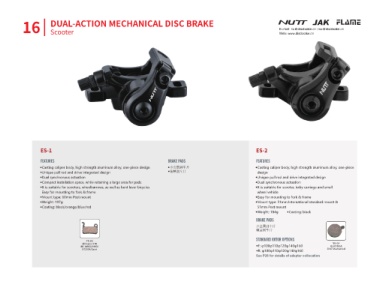

15 DUAL-ACTION MECHANICAL DISC BRAKE 16 DUAL-ACTION MECHANICAL DISC BRAKE

Road Bike
Scooter

S-7

ES-1 ES-2
FEATURES
FEATURES BRAKE PADS FEATURES
◆高强度铸造铝合金卡钳 ◆Casting caliper body, high strength aluminum alloy, one-piece design ◆少金属刹车片 ◆Casting caliper body, high strength aluminum alloy, one-piece
◆仅适用于公路自行车平面安装方式 YK-01 ◆Unique pull rod and drive integrated design ◆铜基刹车片 design
Shimano
◆双面驱动结构，独特的浮动拉杆创新设计 Deore Mechanical
◆活动法兰设计，有效降低制动能量损耗 ◆Dual synchronous actuation ◆Unique pull rod and drive integrated design
◆易于安装与调整 ◆Compact installation space, while retaining a large area for pads ◆Dual synchronous actuation
◆安装类型：前70mm后34mm ◆It is suitable for scooters, wheelbarrows, as well as bent lever bicycles ◆It is suitable for scooter, baby carriage and small
◆涂装：黑色 Easy for mounting to fork & frame wheel vehicle
K2-B
F-Φ160(34→70mm) ◆Mount type: 60mm Post mount ◆Easy for mounting to fork & frame
◆Weight: 197g ◆Mount type: 51mm International standard mount &
BRAKE PADS ◆Coating: black/orange/blue/red 51mm Post mount
◆Weight: 184g ◆Coating: black
◆少金属刹车片
◆铜基刹车片 BRAKE PADS
K2
少金属刹车片
F-Φ140(34→70mm)
铜基刹车片
STANDARD ROTOR OPTIONS YK-05 STANDARD ROTOR OPTIONS
Shimano XTR YK-03
ALHONGA
◆F: φ140φ160 BR-M965/M966 ◆F: φ100φ110φ120φ140φ160 SNG Mechanical
XT2004/Saint
◆R: φ140φ160 K1 ◆R: φ100φ110φ120φ140φ160
See P25 for details of adapter collocation R-Φ160(34mm) See P26 for details of adapter collocation
